Starting with additional sensors, aids for connecting the stationary devices GetDew Base to your process, heated hoses, additional insulation covers for a longer retention time of the data loggers GetDew Go in the process, thermocouples, air filters and cleaning supplies, we can provide everything you need on request.

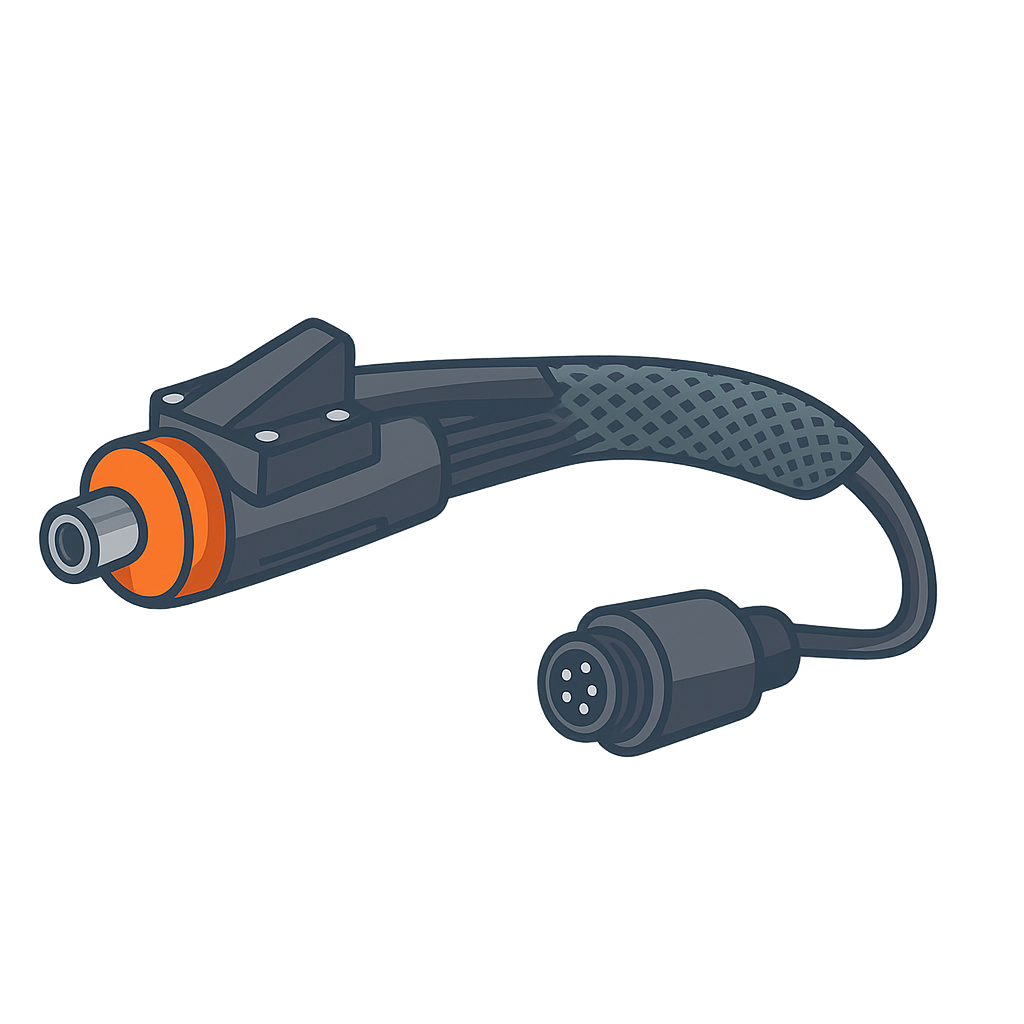

GetDew Base must be connected to the process atmosphere via a heatable hose. We can help you select a suitable system and can also supply it.

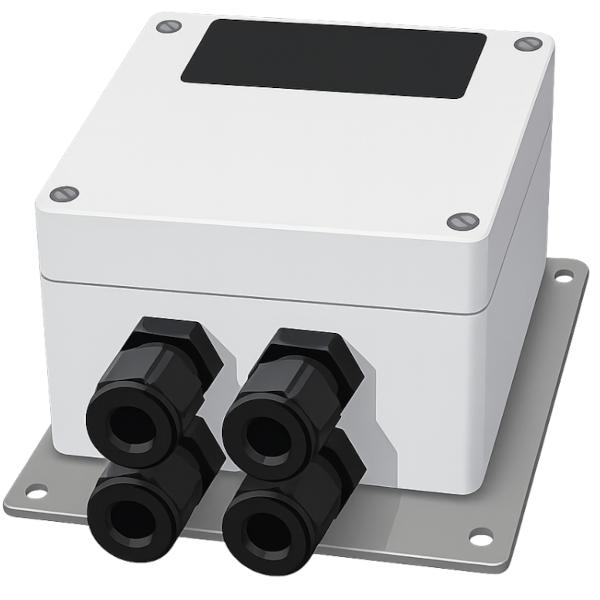

A suitable controller is required to regulate the temperature of a heating hose. We can help you select and procure one.
The use of the GetProt 120 and GetProt 150 thermal protection sleeves significantly extends the dwell time of the GetDew Go measuring devices in the process, especially at high temperatures. The relationship between ambient air temperature and the dwell time in the process can be seen in the adjacent graph. The application-specific installation of the cover provides a high degree of flexibility. The basic device can still be used in space-critical applications and is also easily portable for long-term processes.
The thermal protection cover consists of two half-shells that are simply placed over the top and bottom of the measuring device and screwed together at the sides. Installation takes less than a minute. After a measurement process, the cover can be removed and cooled just as easily.
The outer material of the cover is made of thin stainless steel, ensuring a tolerable weight. The PTFE insulation at the joints of the covers and the high-temperature-resistant insulating materials inside result in very high thermal resistance. A series connection of different heat capacities and thermal resistances ensures a significant increase in the thermal time constant of the entire system.
The additional insulation layer increases the overall height of the measuring device. Since longer operating times usually occur in conjunction with larger finished product dimensions, the possible applications are not restricted by the greater height.
The standard thermocouple type K, Ni-CrNi, is used in our measuring devices. We offer various designs depending on the intended use. With very thin measuring points for determining the internal product temperature or with an enlarged measuring point for measuring the surface temperature.
Different lengths, insulations and configurations are available depending on your requirements. Tell us what you need and we will be happy to advise you and offer you the right solution.
